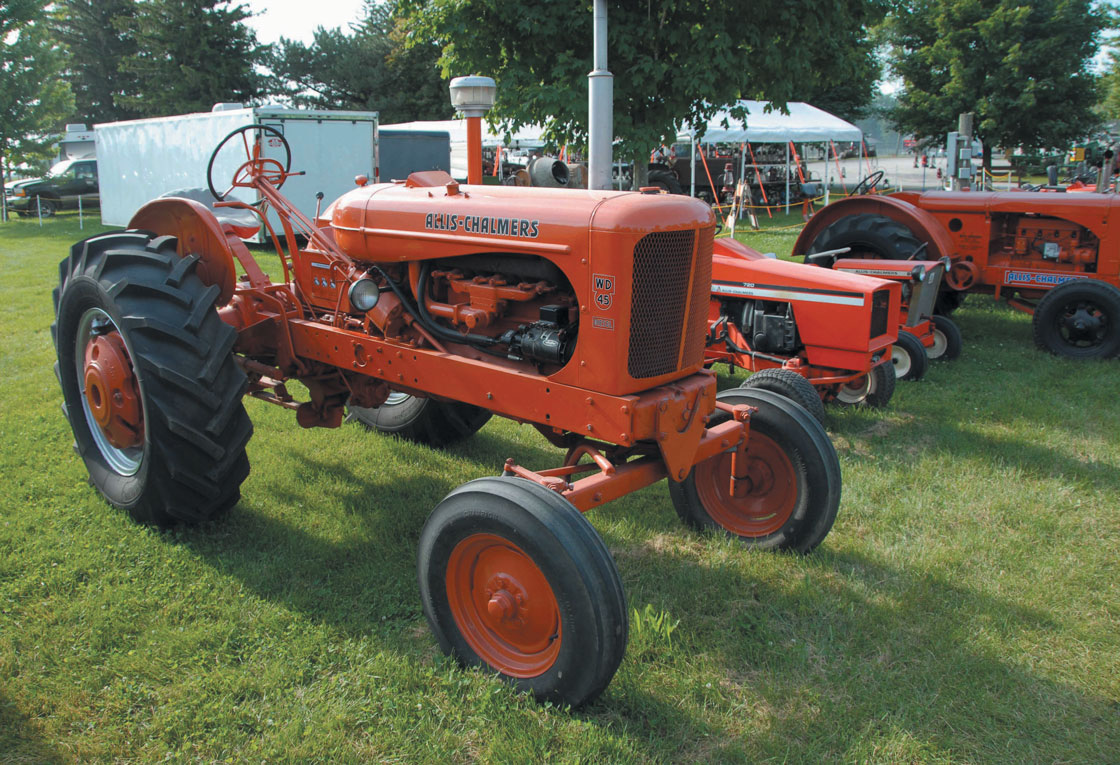

1955 ALLIS CHALMERS WD-45 DIESEL

Motortopia Staff . 28th December, 2021
0 Likes
  • 1955 ALLIS CHALMERS WD-45 DIESEL
  • 1955 ALLIS CHALMERS WD-45 DIESEL
  • 1955 ALLIS CHALMERS WD-45 DIESEL

Vehicle Details

Owner/ Builder

Vehicles Highlights

Manufacturing year: 1955

Engine:

ENGINE

  • 6-CYLINDER
  • BUDA-LANOVA BD-230

DISPLACEMENT

  • 230 CI

BORE & STROKE

  • 3.44 X 4.12-INCHES

RATED BELT POWER

  • 45.42 HP @ 1625 RPM

RATED DRAWBAR POWER

  • 40.42 HP @ 1629 RPM

FLYWHEEL POWER

  • 55 HP @ 1625 RPM

FLYWHEEL TORQUE

  • 166 LBS-FT @ 1250 RPM

COMPRESSION RATIO

  • 15.5:1

Transmission:

Exterior Color:

Interior Color:

Specification

.

ENGINE

  • 6-CYLINDER
  • BUDA-LANOVA BD-230

DISPLACEMENT

  • 230 CI

BORE & STROKE

  • 3.44 X 4.12-INCHES

RATED BELT POWER

  • 45.42 HP @ 1625 RPM

RATED DRAWBAR POWER

  • 40.42 HP @ 1629 RPM

FLYWHEEL POWER

  • 55 HP @ 1625 RPM

FLYWHEEL TORQUE

  • 166 LBS-FT @ 1250 RPM

COMPRESSION RATIO

  • 15.5:1

.

TRANSMISSION

  • 4-SPEED WEIGHT
  • 4,730 LBS.

WHEELBASE

  • 8 8.12- I N C H E S

FUEL CAPACITY

  • 15 GALLON TIRES
  • 5.5X16 FRONT
  • 12x28 rear

FUEL CONSUMPTION

  • 3.1 GPH @ FULL POWER

DRAWBAR PULL

  • 5,909 LBS.

TOP SPEED

  • 12 MPH
As Rated by Nebraska Tractor Test #563
