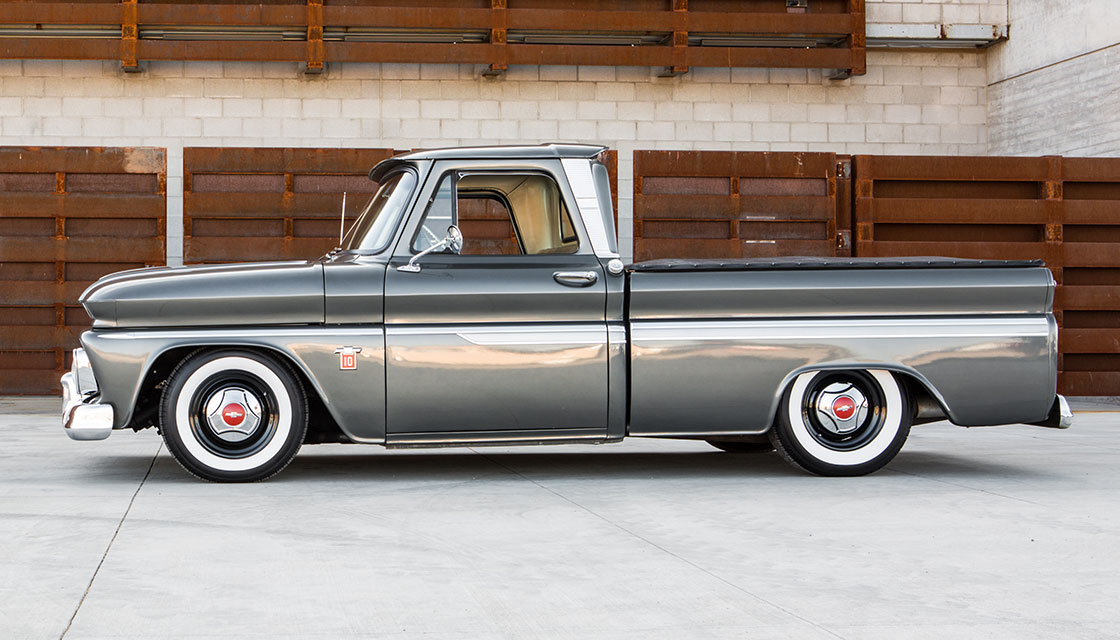

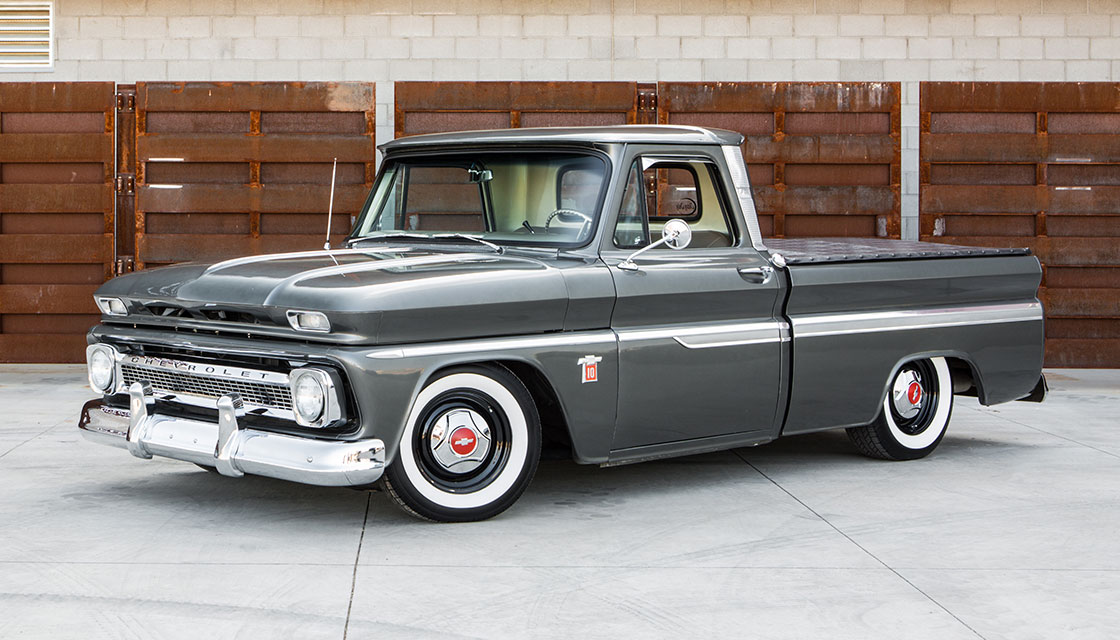

1964 Chevrolet C10

Motortopia Staff . 28th December, 2021
0 Likes

Vehicle Details

Owner/ Builder

TREVOR WILKINSON

Vehicles Highlights

Manufacturing year: 1964

Engine:

ENGINE

  • Shop: Engine swap by Street Machinery, Cleveland, OH
  • 2016 Chevy Performance Connect & Cruise 6.2L 376 ci LS3
  • 495 hp/473 ft-lbs torque
  • 2016 Chevy Performance Connect & Cruise 4L70E transmission
  • Performance Rod & Custom radiator
  • All holes on firewall filled
  • A/C and heater lines run behind inner fender
  • Hypereutectic aluminum pistons
  • Cast iron block, nodular iron crank, Camaro oil pan
  • Sanderson headers
  • Flowmaster 40 Series Delta Flow mufflers
  • Edelbrock water pump
  • Billet Specialties black anodized TruTrac serpentine system
  • Powermaster alternator
  • ATI Super Damper
  • CPP front disc and rear drum brakes
  • Wilwood master cylinder

WHEELS & TIRES

  • 15x7 and 15x8 Wheel Vintiques Series 62 wheels
  • 225/70/15 and 235/70/15 Diamondback Radials 3-inch whitewall tires

Transmission:

Exterior Color:

Interior Color:

Specification

.

ENGINE

  • Shop: Engine swap by Street Machinery, Cleveland, OH
  • 2016 Chevy Performance Connect & Cruise 6.2L 376 ci LS3
  • 495 hp/473 ft-lbs torque
  • 2016 Chevy Performance Connect & Cruise 4L70E transmission
  • Performance Rod & Custom radiator
  • All holes on firewall filled
  • A/C and heater lines run behind inner fender
  • Hypereutectic aluminum pistons
  • Cast iron block, nodular iron crank, Camaro oil pan
  • Sanderson headers
  • Flowmaster 40 Series Delta Flow mufflers
  • Edelbrock water pump
  • Billet Specialties black anodized TruTrac serpentine system
  • Powermaster alternator
  • ATI Super Damper
  • CPP front disc and rear drum brakes
  • Wilwood master cylinder

WHEELS & TIRES

  • 15x7 and 15x8 Wheel Vintiques Series 62 wheels
  • 225/70/15 and 235/70/15 Diamondback Radials 3-inch whitewall tires

.

CHASSIS & SUSPENSION

  • Shop: Street Machinery
  • CPP front 3-inch drop springs, 2-inch spindles, 1-inch spring spacers
  • CPP rear 5-inch drop springs, 1-inch spacers, shocks all around
  • Rear notch in factory frame
  • New fuel tank mounted between frame rails

BODY & PAINT

  • Gunmetal Gray metallic paint

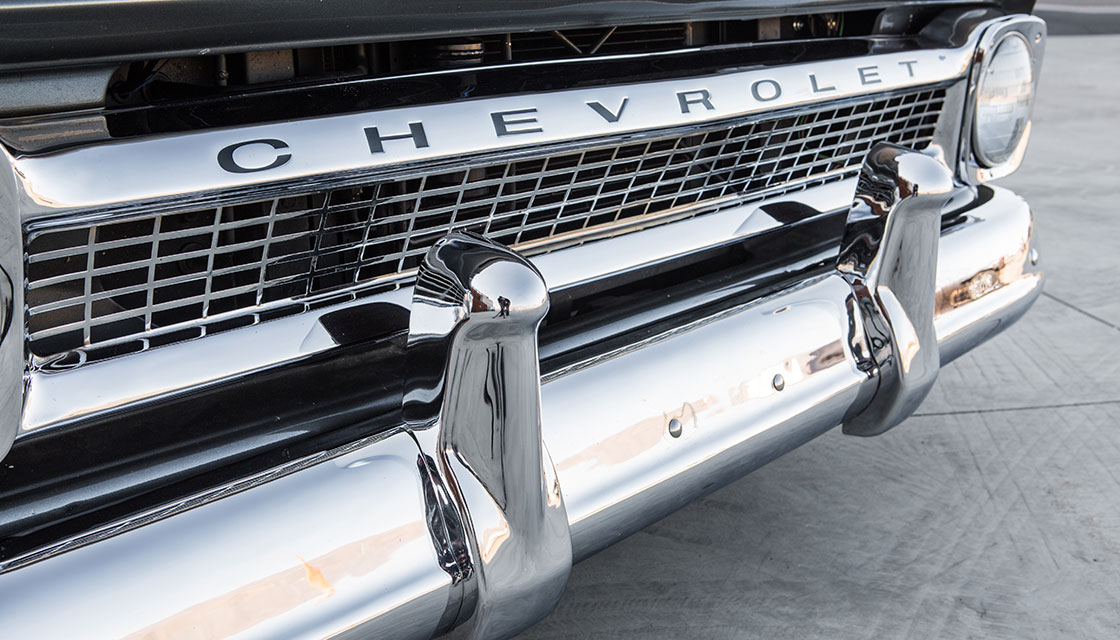

  • Chrome grille
  • Factory bumpers rechromed

INTERIOR & STEREO

  • Factory bench seat recovered
  • 1964 Chevy Nova steering wheel
  • Factory gauges with Dakota Digital speedo adaptor
  • Early 60s Chevy van tilt column
  • Custom AutoSound head unit
  • Vintage Air vents painted to match dash
  • A/C controls have 1964 factory knobs
