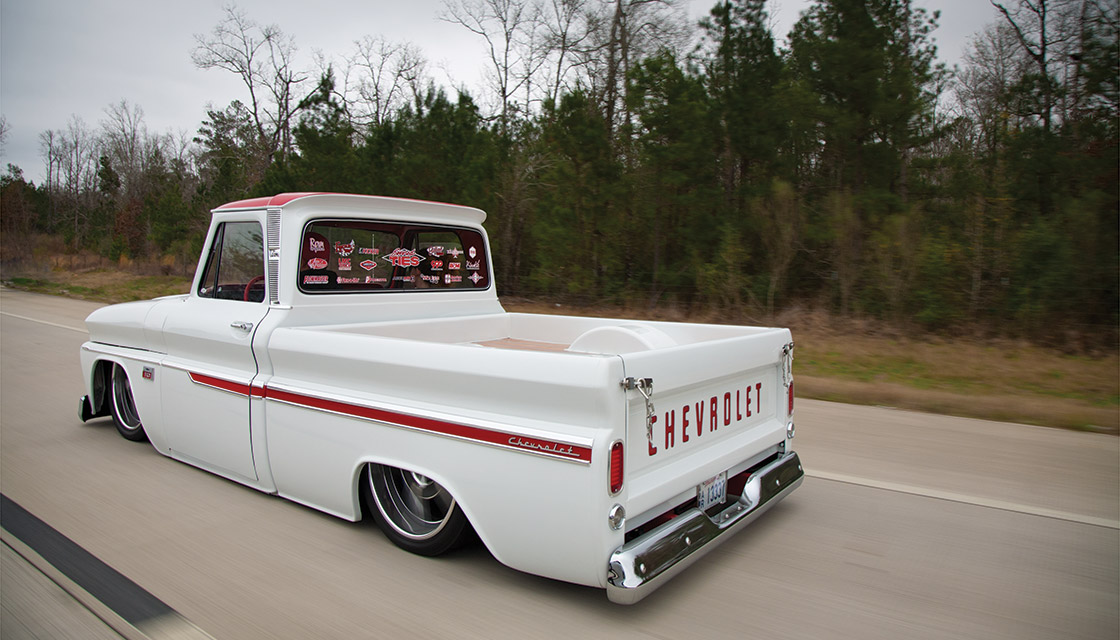

1966 Chevrolet C-10

Motortopia Staff . 2nd January, 2023

0 Likes

Vehicle Details

Owner/ Builder

Chris Stafford

Vehicles Highlights

Manufacturing year: 1966

Engine:

ENGINE

Chevy 383-ci engine built by BluePrint Engines

450 hp, 460 ft-lbs torque

Blueprint aluminum heads

Edelbrock dual-plane intake

Holley dual-feed 750-cfm carburetor

Stewart Components high- performance water pump

Flex-a-lite aluminum radiator and fans

Sanderson block-hugger headers

Flow master Super 10 mufflers and custom 2.5-inch exhaust by Brent Kelly

Vintage Air Front Runner serpentine system

GM TH350 transmission with B&M Stage 2 shift kit performed by Tucker’s Transmission

Dayco 2,500-stall torque converter

American Autowire hidden wiring

SUSPENSION

Shop: Popeye’s Rod Shop

Porterbuilt extreme Dropmember with tubular A-arms

CPP 2-inch modular drop spindles with 13-inch big brake kit and rear disc conversion

Custom back-half frame

2-link setup with track bar

KYB shocks front and rear

AccuAir E-Level air management system

CPP brake master cylinder and booster

GM rearend shortened 3 inches with Moser axles and 3.42:1 gears

LMC rear-mount gas tank kit

Transmission:

Exterior Color:

Interior Color:

Specification

ENGINE

WHEELS & TIRES

22x8.5 and 22x10-inch Raceline Scoundrels polished with powder-coated centers and knock-offs

265/35R22 and 285/35R22 Nitto NT420S

BODY & PAINT

Shop: Extreme Liners & Customs/Jeffrey Brignac, Donald Plumer, Chad Louque and owner

LMC premium chrome bumpers, grille and trim

Shaved hood seams, bed seams and gas door

Porterbuilt hood hinges

Precision Replacement Parts weather-stripping and seals

LMC patch panels installed by Shane Craft at JT Kustoms

Custom sheet metal bed, with airbrushed wood floor

Painted with R-M DC5335 Clear and Frost White/Flame Red paint

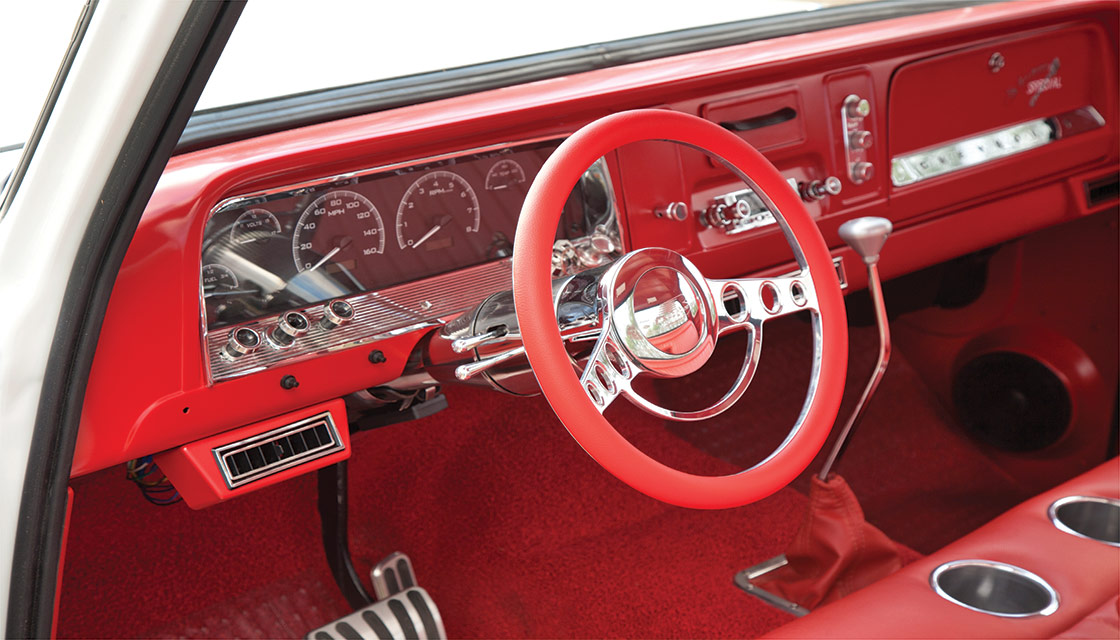

INTERIOR & STEREO

Shop: LB Upholstery

Custom bench seat with built-in billet cup holders
