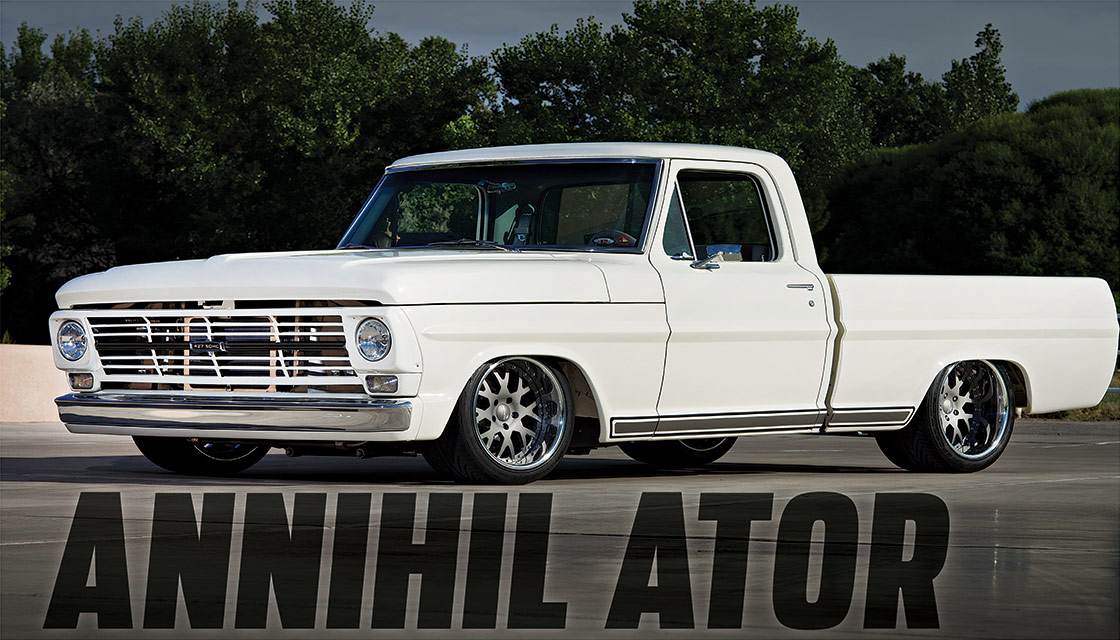

1969 Ford F-100

Motortopia Staff . 14th February, 2023

0 Likes

Vehicle Details

Owner/ Builder

Jack Nelson

Vehicles Highlights

Manufacturing year: 1969

Engine:

ENGINE

Ford SOHC 427 Cammer

Billet Moldex crankshaft

Crane 612A camshaft

CP pistons

Crower rods

Dove aluminum heads

Ferrea stainless valves

T&D rockers

Edelbrock water pump

Mechman alternator

Mattson radiator

SPAL fans

Dove dual-plane intake

FAST dual throttle bodies

Wild West Street Rods custom 2-inch Jet-Hot-coated headers

Wild West Street Rods custom 3-inch exhaust with 70 series Flowmasters

C6 Transmission with Gear Vendors OD and 3,000-rpm Hughes converter

Mark Williams custom aluminum driveshaft

SUSPENSION

Chassis components and suspension work by Rob MacGregor, No Limit Engineering

No Limit Engineering Wide Glide Mustang II IFS

Tubular No Limit control arms, ROMIC front coli-over shocks

No Limit 2-inch Camaro dropped spindles

Wilwood 13-inch front brakes

No Limit Fat Bar rear 4-link

Ridetech rear coil-over shocks

Wilwood 12.2-inch rear brakes

WHEELS & TIRES

18x10 and 19x12 SCHOTT Vector

275/35ZR18 and 345/30ZR19 Michelin Pilot Sport

Transmission:

Exterior Color:

Interior Color:

Specification

ENGINE

BODY & PAINT

Performed by Wild West Street Rods: Jim Malone and Lorenzoand Wilson Blackie

All seams welded and metal- finished

LMC Truck rear roll pan

Kindig-It Design door handles

Econoline front bumper

Shaved emblems and trim

High efficiency white halogen headlights and LED taillights

Custom Wimbledon White paint with custom performance-inspired graphic by Jim Malone of Wild West Street Rods

C. Cook Enterprises 427 SOHC grille badge

INTERIOR

Wise Guy seats stitched in leather by Justin Stephens, JS Custom Interiors in Salt Lake City

Dakota Digital gauges

Grant steering wheel

Lokar shifter

Vintage Air AC unit

Custom audio system by Jim Purdue of McDue Ultimate Audio

Pioneer head unit

Illusion Audio speakers and amplifiers

Hushmat sound deadener

SPECIAL THANKS FROM THE OWNER: “Wild West Street Rods’ Jim Malone, Lorenzo Blackie and Wilson Blackie: body, paint, engine installation, exhaust and fabrication. Rob MacGregor of No Limit Engineering: chassis, suspension and fuel system. Kurt Neighbor: assembly. Mark Williams: driveshaft. Justin Stephens of JS Custom Interiors: interior work. C. Cook Enterprises: custom 427 SOHC grille emblem. Jim Purdue of McDue Ultimate Audio: stereo system.”
