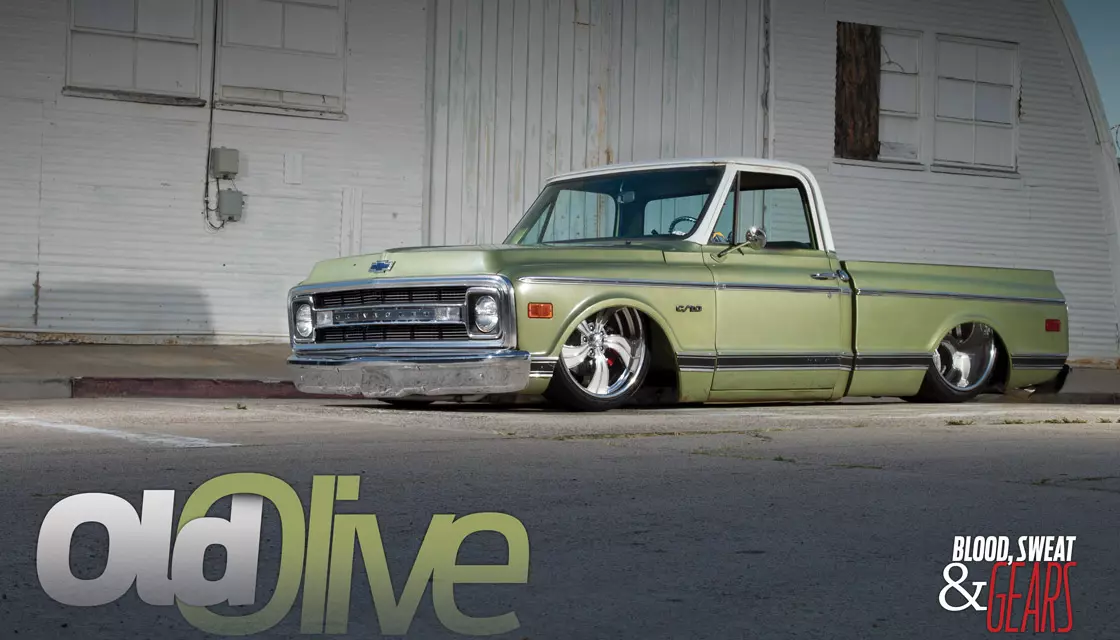

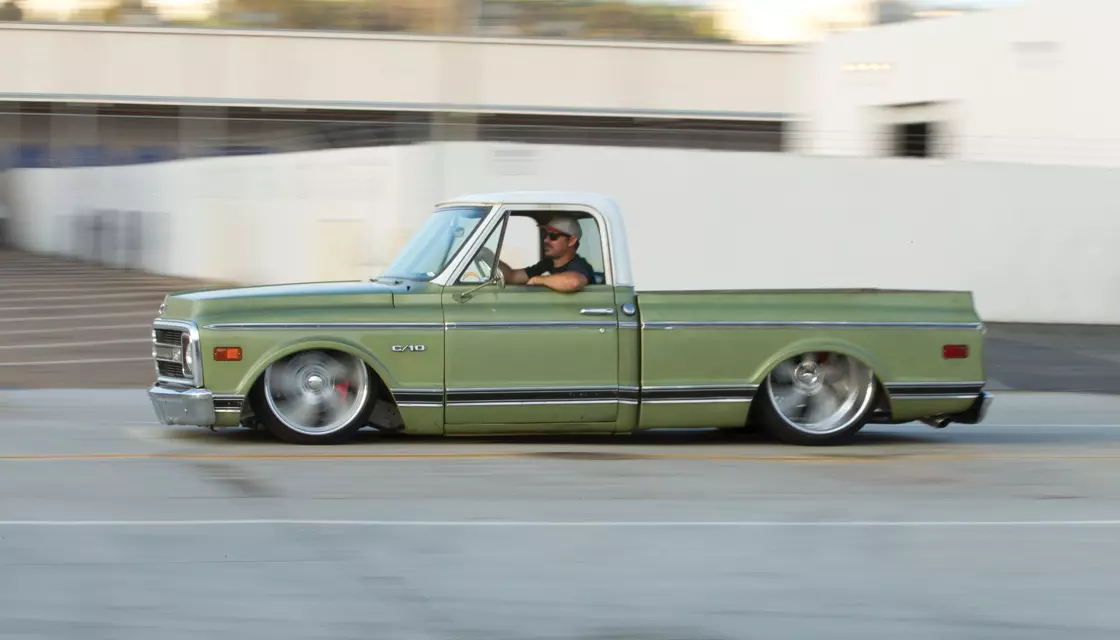

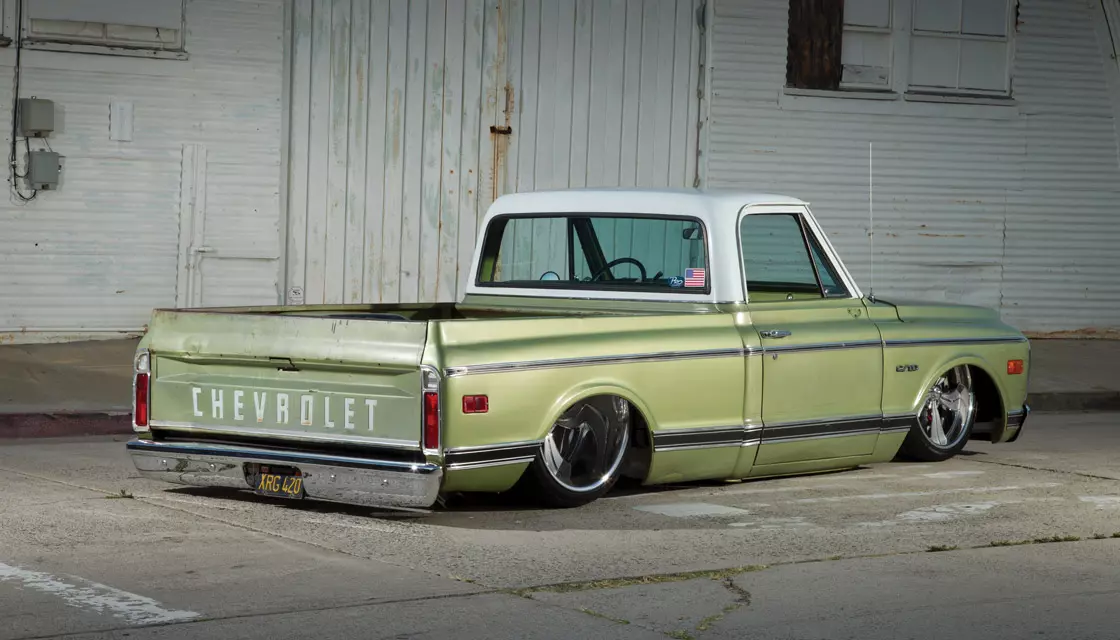

1970 Chevy C-10

Motortopia Staff . 26th February, 2023
0 Likes

Vehicle Details

Owner/ Builder

Josh Criswell

Vehicles Highlights

Manufacturing year: 1970

Engine:

ENGINE

  • 6.0L Chevy LS
  • Aluminum LS3 heads
  • COMP Cams 229/236,624/ .615, 112LSA
  • ARP studs
  • Melling oil pump
  • Entropy radiator with dual electric fans
  • FAST throttle body
  • Spectre intake
  • Hooker headers
  • Custom 3-inch stainless exhaust with dual Magnaflow mufflers
  • 4L65E trans
  • Two-piece driveshaft and custom Moser narrowed rear
  • 19-gallon fuel tank
  • Aeromotive in-tank fuel pump

CHASSIS &SUSPENSION

  • McGaughy’s drop spindles
  • Porter built Version-6 front subframe
  • One-off Porterbuilt rear suspension
  • Porterbuilt upper and lower control arms
  • Narrowed rear frame rails
  • Weld-in step notch
  • Chassis powder-coated white
  • Watts link
  • Tubular trailing arms
  • KYB front and rear shocks
  • AccuAir E-level
  • management and VU-4
  • Airbags front and rear
  • Dual VIAIR 440c compressors
  • 5-gallon air tank 3⁄8copper hard lines

WHEELS & TIRES

  • 22x9 and 24x15 Intro Twisted Vista IIs
  • Front: 245/35R22 Goodyear F1 tires
  • Rear 405/25R24 Pirelli
  • PZero tires

Transmission:

Exterior Color:

Interior Color:

Specification

.

ENGINE

  • 6.0L Chevy LS
  • Aluminum LS3 heads
  • COMP Cams 229/236,624/ .615, 112LSA
  • ARP studs
  • Melling oil pump
  • Entropy radiator with dual electric fans
  • FAST throttle body
  • Spectre intake
  • Hooker headers
  • Custom 3-inch stainless exhaust with dual Magnaflow mufflers
  • 4L65E trans
  • Two-piece driveshaft and custom Moser narrowed rear
  • 19-gallon fuel tank
  • Aeromotive in-tank fuel pump

CHASSIS &SUSPENSION

  • McGaughy’s drop spindles
  • Porter built Version-6 front subframe
  • One-off Porterbuilt rear suspension
  • Porterbuilt upper and lower control arms
  • Narrowed rear frame rails
  • Weld-in step notch
  • Chassis powder-coated white
  • Watts link
  • Tubular trailing arms
  • KYB front and rear shocks
  • AccuAir E-level
  • management and VU-4
  • Airbags front and rear
  • Dual VIAIR 440c compressors
  • 5-gallon air tank 3⁄8copper hard lines

WHEELS & TIRES

  • 22x9 and 24x15 Intro Twisted Vista IIs
  • Front: 245/35R22 Goodyear F1 tires
  • Rear 405/25R24 Pirelli
  • PZero tires

.

BRAKES

  • Baer Brakes 13-inch rear, 14-inch front, drilled and slotted rotors
  • Wilwood master cylinder
  • Wilwood proportioning valve
  • Performance Online Hydroboost
  • Russell high-pressures braided stainless lines and fittings

BODY & PAINT

  • Rear Tubs by HartRod ChubTubz
  • Factory Medium Olive Green and White
  • Natural patina
  • Smooth firewall
  • High-hump interior trans tunnel
  • Original bed floor raised 12 inches
  • Hinged floor panel for fuel filler and hardline access

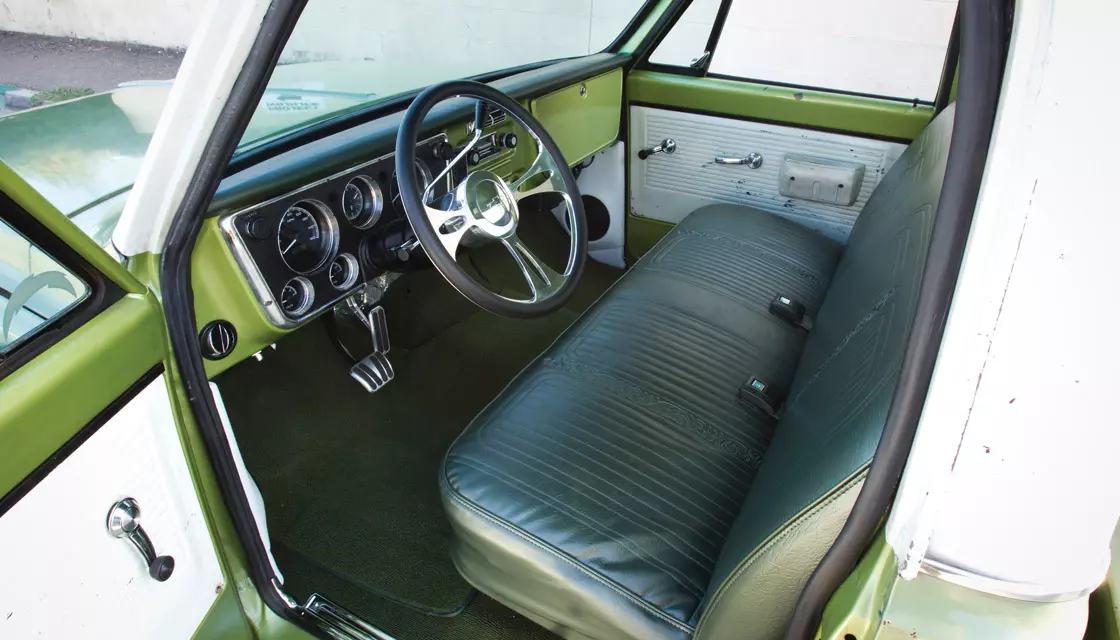

INTERIOR & STEREO

  • Factory seats with olive vinyl
  • Olive loop carpet
  • Hidden stereo
  • Pioneer speakers and kick panels
  • Dakota Digital VHX gauges
  • Vintage Air AC
  • Billet Specialties steering wheel
  • ididit tilt steering column
SPECIAL THANKS FROM THE OWNER: “Thanks to Travis Dulgerian at Pro Performance (Azproperformance.com) for most of the parts for the build and tons of support from their top-of-the-line customer service; Nate Porter at Porter built for all the support; Rob Hartley at Hart Rod for the custom rear tubs; Brandon Cumbie at Get Your Shift Together Transmissions, and JohnyGat Johny's Garage for the helpful advice.”
