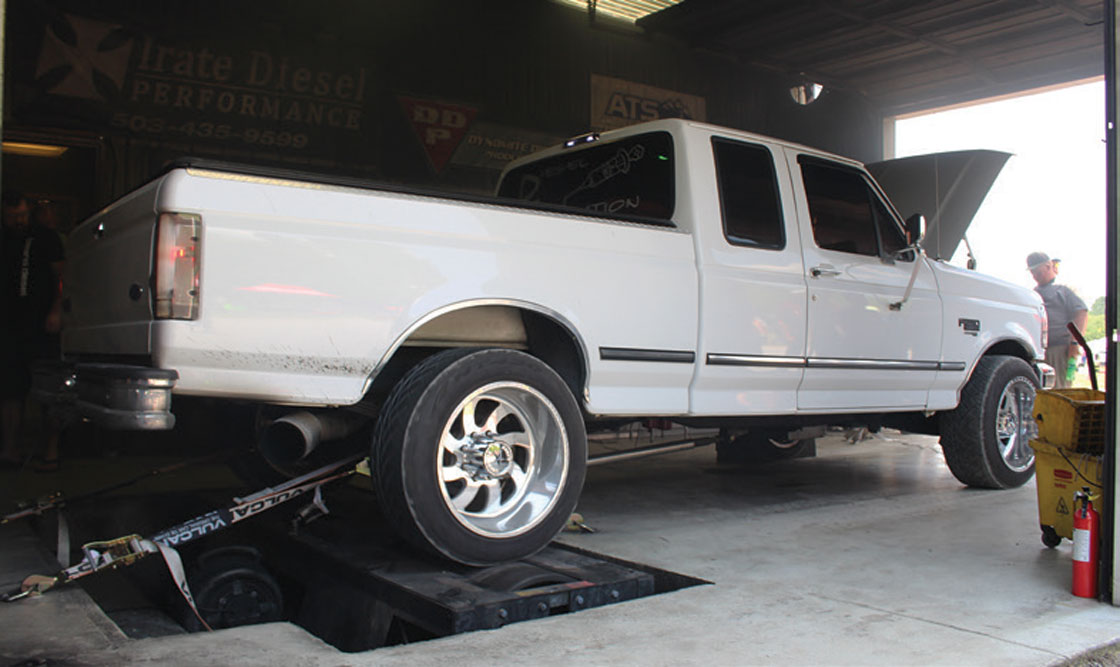

1997 FORD F-250

Motortopia Staff . 28th December, 2021
0 Likes

Vehicle Details

Owner/ Builder

David Keyser

Vehicles Highlights

Manufacturing year: 1997

Engine:

ODOMETER

  • 196,700 miles

ENGINE

  • 7.3L Power Stroke

SHORT-BLOCK

  • Factory crankshaft
  • Irate Diesel Performance competition main cap girdle
  • ARP main studs
  • Riffraff Diesel Performance welded piston oil jets
  • Manley Performance forged-steel rods
  • Irate Diesel fly-cut standard bore pistons
  • Colt Stage 2 cam with welded cam gear
  • Fluidampr
  • ATS Diesel billet flex plate
  • Mishimoto radiator

HEADS/VALVETRAIN

  • Crutchfield Machine mild porting and performance valve job
  • Power Stroke Products 165-ppi HD beehive valve springs and retainers
  • Smith Brothers 0.120-inch wall 4130 chromoly pushrods
  • Eco Diesel Dynamics cryo’d factory rockers
  • ARP head studs

FUEL

  • Full Force Diesel 350/200 hybrid injectors
  • Irate Diesel OBS fuel system with Walbro lift pump and regulated return

AIR

  • Irate Diesel T4 turbo mounting system with stainless steel up-pipes and intercooler piping
  • BorgWarner S472 SX-E
  • CSF intercooler
  • Vibrant Performance clamps

ELECTRONICS

  • Power Hungry Performance Hydra Chip with Jelibuilt Performance custom tuning

Transmission:

Exterior Color:

Interior Color:

Specification

.

ODOMETER

  • 196,700 miles

ENGINE

  • 7.3L Power Stroke

SHORT-BLOCK

  • Factory crankshaft
  • Irate Diesel Performance competition main cap girdle
  • ARP main studs
  • Riffraff Diesel Performance welded piston oil jets
  • Manley Performance forged-steel rods
  • Irate Diesel fly-cut standard bore pistons
  • Colt Stage 2 cam with welded cam gear
  • Fluidampr
  • ATS Diesel billet flex plate
  • Mishimoto radiator

HEADS/VALVETRAIN

  • Crutchfield Machine mild porting and performance valve job
  • Power Stroke Products 165-ppi HD beehive valve springs and retainers
  • Smith Brothers 0.120-inch wall 4130 chromoly pushrods
  • Eco Diesel Dynamics cryo’d factory rockers
  • ARP head studs

FUEL

  • Full Force Diesel 350/200 hybrid injectors
  • Irate Diesel OBS fuel system with Walbro lift pump and regulated return

AIR

  • Irate Diesel T4 turbo mounting system with stainless steel up-pipes and intercooler piping
  • BorgWarner S472 SX-E
  • CSF intercooler
  • Vibrant Performance clamps

ELECTRONICS

  • Power Hungry Performance Hydra Chip with Jelibuilt Performance custom tuning

.

OIL

  • Swamps Gen3 high-pressure oil pump over factory 15-degree HPOP
  • DieselSite high volume low-pressure oil pump

EXHAUST

  • Irate Diesel 3-inch downpipe
  • 4-inch aluminized system to 6-inch tip

TRANSMISSION

  • E4OD with billet input shaft
  • 6-pinion steel planetaries
  • Alto clutches
  • Twisted Diesel valvebody
  • RevMax 1,700-rpm stall triple disc converter
  • Derale Performance flow-through pan and auxiliary transmission cooler

HORSEPOWER

  • 687 rwhp (dyno)

TORQUE

  • 1,279 lb-ft (dyno)

TIRES

  • 285/50R20 Nitto NT420S

WHEELS

  • 20x12 American Force polished Blade SS8

SUSPENSION/AXLES

  • Homemade traction bars with bolt-on mounts
  • Yukon 3.55:1 ring and pinion
  • Grizzly locker
